Quality of Service Setup for Home and SMB Networks

Your call keeps breaking the moment someone starts a cloud backup, or the office phone sounds fine until everyone else gets online. That usually isn't a bad internet plan. It's a quality of service setup problem, which means the network is making the wrong traffic wait when the link gets busy.

The fix is rarely a single toggle. In practice, it's about measuring what's happening, classifying traffic correctly, shaping the link with intent, and then proving the change helped under congestion. Done well, QoS keeps VoIP, video calls, backups, and browsing from stepping on each other. Done badly, it just hides the true bottleneck and makes the connection feel slower than it should.

Table of Contents

• What Quality of Service Setup Really Does
  • The four knobs that actually matter
• Matching Traffic Types to Priority Tiers
  • A practical tiering model
• Configuring QoS on Your Router Step by Step
  • Start with the WAN speed you actually measured
  • Match the traffic that actually causes pain
• A Real Edmonton Fix for VoIP Cutouts
  • Why the first setup failed
• Testing and Verifying That QoS Actually Works
  • Measure on the local network first
  • Keep the results in a simple table
• When QoS Is the Wrong Tool to Reach For
  • Know when the hardware is the problem
• Common Pitfalls and a Practical Rollout Checklist
  • A rollout checklist that actually holds up

What Quality of Service Setup Really Does

A proper quality of service setup is a scheduling decision, not a speed upgrade. When a link is idle, traffic usually moves without drama. When the link fills up, QoS decides which packets go first, which ones wait, and which ones get squeezed out first.

That distinction matters because a lot of people expect QoS to create bandwidth. It can't. It only rations what the line already has, which is why a badly tuned rule set can make a fast connection feel more constrained. Cisco's voice QoS guidance is blunt about that trade-off, reserving bandwidth for voice means less is left for everything else during congestion, so QoS is always a compromise, not free speed (Cisco QoS for Voice over IP).

The four knobs that actually matter

Most deployments come down to four controls:

• Traffic classification: identify packets by DSCP, ports, or application signatures.
• Priority queues: let voice and interactive traffic jump the line.
• Bandwidth shaping: cap or guarantee how much each class can take.
• Queuing discipline: keep the queue from turning into a bufferbloat mess.

Practical rule: if you can't classify the traffic cleanly, you're not really doing QoS. You're guessing.

That's why the first job is measurement, not clicking a “gaming” checkbox. For a clean reference on broader network tuning work, Nerds 2 You keeps a useful overview of performance optimisation for home and SMB networks, and it fits the same mindset, fix the bottleneck you can prove.

A lot of people miss the headroom trade-off on faster links too. Aggressive shaping can reserve enough space for latency-sensitive traffic that the line never quite runs at its advertised peak, and that's intentional. The point is to keep the call stable while a backup runs, not to brag about a speed test.

For guest networks and similar lighter-touch setups, a practical comparison point is QoS setup for guest Wi-Fi, because it shows how the same priority logic gets simplified when the use case is narrower.

Matching Traffic Types to Priority Tiers

The cleanest way to build a QoS policy is to sort traffic by how badly it reacts to delay. Voice breaks first, video conferencing comes next, then interactive apps, then streaming, then ordinary browsing, and finally bulk transfers that can wait.

That order is more useful than obsessing over brand names or app labels. A phone call doesn't care whether it's SIP or WebRTC if it's getting jittered. A cloud backup doesn't care if it starts ten minutes later, as long as it finishes before morning.

A practical tiering model

Traffic Class	Priority Tier	DSCP Marking	Typical Bandwidth
Voice, SIP, RTP, WebRTC audio	Highest	EF	About 100 kbps per call
Video conferencing	High	AF41	About 2.5 Mbps per HD call
Interactive remote apps, SSH, gaming	High to medium	AF31	Varies by session
Streaming video	Medium	AF21	About 25 Mbps for 4K
General web and email	Default	Best effort	Light to moderate
Cloud backups, sync, updates, torrent traffic	Lowest	CS1 or unmarked	Whatever is left

The numbers above are starting points, not law. They tell you which class deserves priority, not what your link can tolerate. A small office with a busy backup window will need different shaping from a home office with one phone, one laptop, and a smart TV.

Practical rule: voice gets the top seat because it's small and unforgiving, not because it's important in some abstract sense. If voice fails, users notice immediately.

For broader hardware context, the internal guide on UniFi network setup and routing is a good companion if you're comparing device families rather than just queue rules. UniFi is also the router family that tends to map cleanly to these tiers in SMB work.

The value of this tiering is that it forces you to ask whether a packet belongs in the fast lane at all. If a task can be delayed without anyone caring, it should be delayed. That's how you keep voice and video stable without letting backups become a silent bully on the wire.

Configuring QoS on Your Router Step by Step

On a UniFi gateway, the setup is straightforward because the interface separates smart queueing from traffic rules. That matters. If the router exposes only a global slider and nothing else, you're shaping blind and shouldn't expect precise results.

Start with the WAN speed you actually measured

The first move is to enable Smart Queues under Network > Settings, then set upload and download values to roughly 85 percent of the measured WAN throughput, not the ISP's advertised rate. That buffer gives the shaper room to manage congestion before the line saturates. Use the measured WAN number, because the billed speed is often not the speed the link sustains under load.

Then create traffic classes for Voice, Video Call, Interactive, Streaming, Default, and Bulk. Give each class a DSCP value and a sensible minimum or maximum bandwidth range. For SMB work, voice should be the strictest queue, and bulk traffic should have the lowest ceiling.

Match the traffic that actually causes pain

The next step is rule matching. SIP often lives on UDP 5060, RTP media usually sits across UDP 10000 to 20000, and your voice and meeting traffic should land in the top tier. Bulk backups go in the lowest tier with a cap so they can't swamp the link during office hours.

The screenshot below shows the kind of traffic-rule layout that makes this usable in practice.

For a practical internal reference on the hardware side, Nerds 2 You keeps a dedicated note on router configuration and network tuning, which is where this kind of rule set belongs when you're doing the work properly.

Consumer routers are usually much less flexible. Asus Merlin, Netgear Nighthawk, and TP-Link ER-series units often give you a single QoS page with broad categories like gaming, streaming, and browsing. You might get a port-based rule or two, plus a global slider, but not much more. If that's all your router offers, it can still help, but it won't give you clean class separation.

If the menu only lets you drag one bandwidth slider, you're not really prioritising traffic. You're setting a ceiling and hoping the defaults behave.

That's the honest line between decent and useful. UniFi makes it easier to build a policy that mirrors the way a small office works. Consumer gear can still help, but it's often too blunt to solve a serious call-quality problem on its own.

A Real Edmonton Fix for VoIP Cutouts

I had a client in a downtown Edmonton office call because a consumer router had been dropped into a business network and the VoIP phones were cutting out during conversation. The office had a hosted PBX, a cable link, and backups running in the background, which is exactly the kind of setup where a basic router starts pretending it can do more than it can.

The fix was practical, not fancy. I replaced the router with a UniFi Cloud gateway, matched SIP and RTP traffic, and put the voice traffic in the highest priority queue. Bulk backups were pushed into a low-priority class with a ceiling, so they could still run without choking the phones when the line got busy.

Why the first setup failed

The original consumer router had a “gaming QoS” toggle, but that didn't solve the problem because it was relying on crude port heuristics rather than a real class policy. It also didn't give me a per-class ceiling, which meant the backup traffic could still crowd the link hard enough to ruin calls.

That's the mistake people make most often. They assume “priority” means “fixed”. It doesn't. If the router doesn't control the lower tiers as well, the top tier just ends up fighting a mess below it.

For a wider look at voice-over-IP planning outside Canada, unified communications in New Zealand is a decent companion read because it frames the same voice-quality problem from a different market.

The result on-site was simple. The office stopped getting complaint calls about clipping and dropout, and the network felt calmer during backup windows. That's the level of improvement that matters, not a prettier dashboard.

Testing and Verifying That QoS Actually Works

QoS only counts if it improves the network under congestion, not just in a router screenshot. Start with a baseline, then repeat the same tests while the line is busy, then run them again after the rules are in place. If you skip one of those states, you're guessing.

Measure on the local network first

CIRA's testing guidance is useful here because it warns against letting VPN traffic distort results, and that advice matters more than people think (CIRA internet performance test guidance). Test on the home or office network itself, not through a tunnel that's competing with the same link you're trying to evaluate.

A practical workflow looks like this:

1. Run sustained ping tests from a Windows workstation to the gateway with ping -t.
2. Generate controlled load with iperf3 between two wired LAN clients.
3. Make a real call or video test while the load is active.
4. Compare before and after once the QoS rules are enabled.

If you want a broader speed-testing refresher, the internal guide on how to test internet speed fits well with this approach, because QoS depends on knowing what the line does before you touch it.

The call test matters more than the synthetic one. A clean ping is nice, but a real voice session during backup traffic tells you whether the queueing policy is actually helping.

Keep the results in a simple table

Metric	No QoS, backup running	QoS enabled, backup running	Acceptable Threshold
Latency	Higher and less stable	Lower and steadier	Stable enough for calls
Jitter	Noticeable variation	Reduced variation	Small enough to avoid clipping
Packet loss	Possible under load	Should drop	Near zero on a clean LAN
Call quality	Choppy or uneven	Clear and stable	Usable for live conversation

If the voice call still stutters, ask one blunt question: is the bottleneck really the QoS engine, or is it the Wi-Fi link or the ISP handoff? That question saves a lot of wasted config changes.

For readers who want a direct tie-in on the symptoms side, fix jitter on video calls is a useful reference because it keeps the focus on what jitter feels like in real conversation, not just on queue labels.

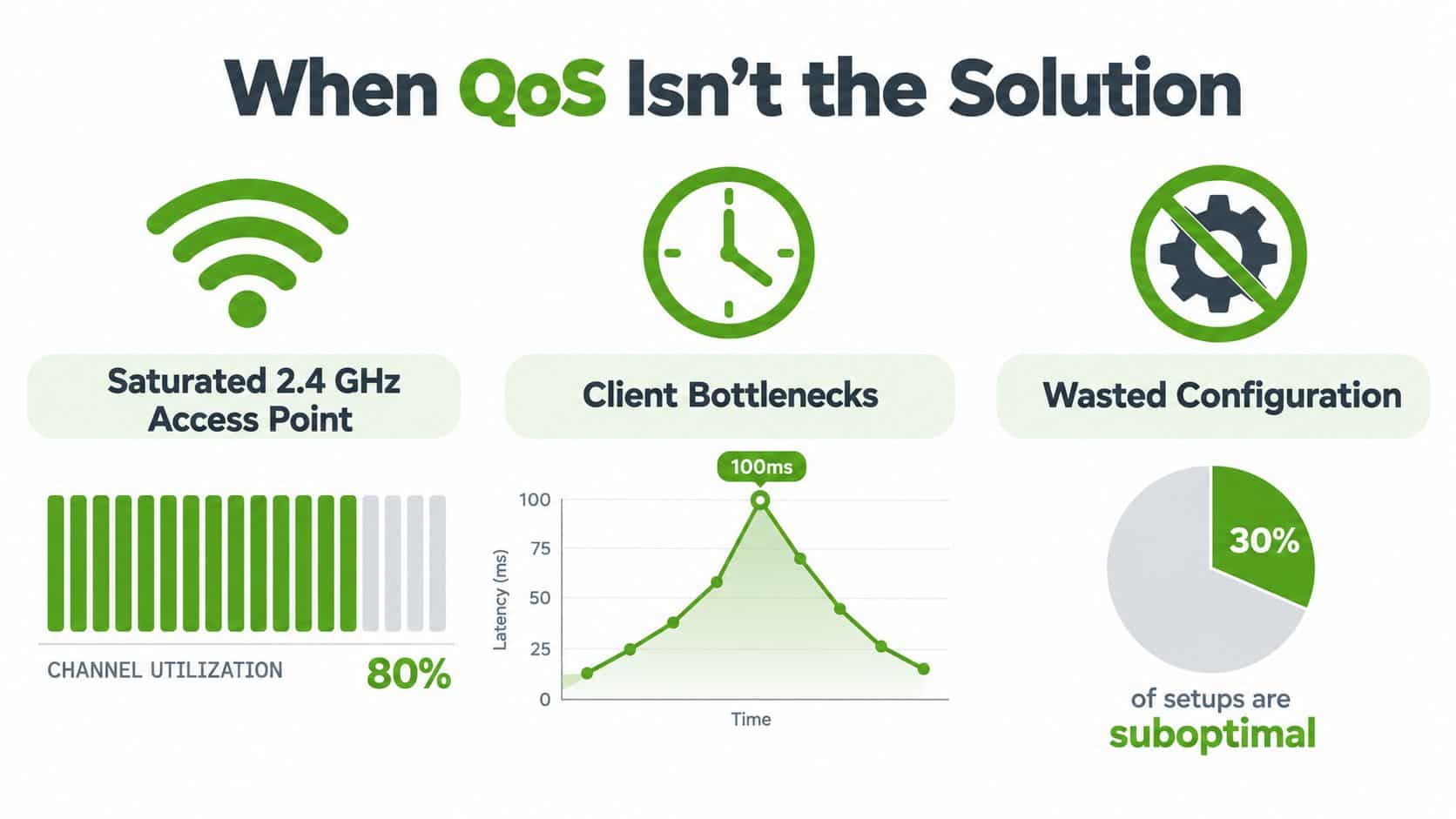

When QoS Is the Wrong Tool to Reach For

QoS gets blamed for problems it can't solve. If the Wi-Fi cell is overloaded, the client is stuck on an old radio standard, or the access point placement is poor, the gateway can stamp packets all day and the call will still sound rough. Airtime is the bottleneck in those cases, not queueing.

A second trap is the false feeling of speed loss. If you enable QoS on a consumer router and set a ceiling below the line's raw maximum, the speed test drops to that ceiling, and people assume the network got worse. In reality, the shaper is just enforcing the limit you asked it to enforce.

Know when the hardware is the problem

Old routers can also struggle with the classification work itself. If the CPU can't keep up, the queue engine starts becoming part of the problem, and you end up with drops or weird lag that look like bad policy but are really bad silicon. A wired phone on a clean switch is a fast diagnostic shortcut.

If that wired phone sounds fine while Wi-Fi calls fail, QoS is not the first fix. If the wired phone also fails during backup windows, then the policy or the upstream capacity needs attention. That distinction saves time, especially in homes where one poor access point is being asked to do everything.

TELUS has also pointed to Wi‑Fi 7 in its 2026 rollout language as a lower-latency, higher-device-density option, which is a reminder that sometimes the answer is newer hardware rather than more queue rules (TELUS Wi‑Fi 7 rollout). In other words, QoS is a tuning layer on a healthy network, not a substitute for a weak one.

Common Pitfalls and a Practical Rollout Checklist

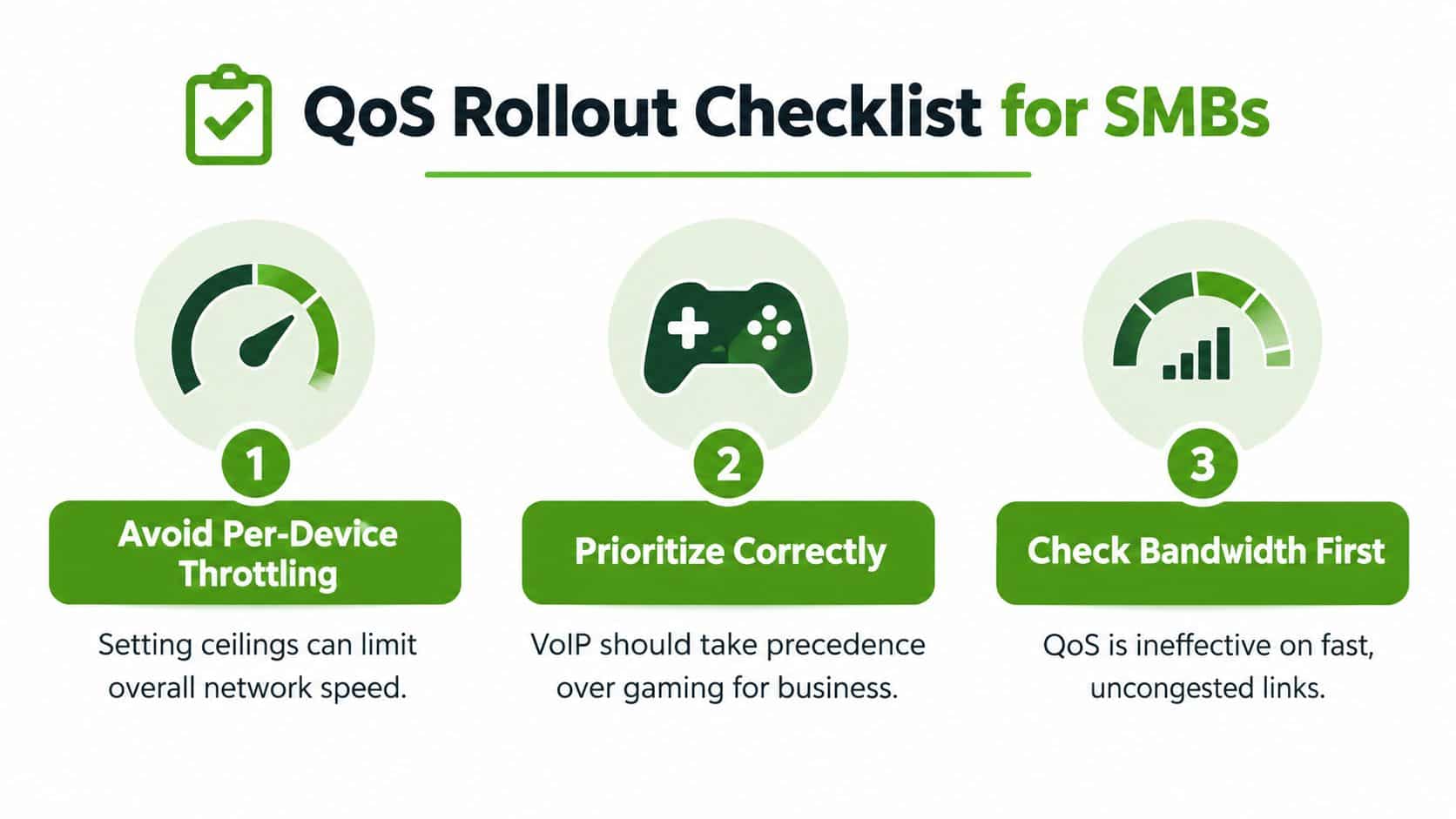

The biggest Edmonton SMB mistakes are usually predictable. Teams set per-device limits that throttle the whole link, give gaming traffic more love than VoIP, forget that QoS mostly affects egress on the gateway, and expect it to fix a saturated Wi-Fi cell. The pretty dashboard looks busy, but the phone still cuts out.

The other mistake is treating the speed reduction as a bug. It isn't. QoS needs headroom to do its job, and that means a modest throughput trade-off during busy periods. If you set the shaper too tightly, you're not breaking the network, you're just making the limit visible.

A rollout checklist that actually holds up

• Baseline first: measure latency, jitter, and packet loss before changing anything.
• Order the rules carefully: voice first, video next, bulk last.
• Change after hours: don't touch QoS while people are on calls.
• Test under load: run a backup or other real congestion source during verification.
• Document the setup: save the rule names, priorities, and any caps for the next tech.

Practical rule: if you didn't test it while the backup was running, you didn't really test it.
