You're in the middle of a video call, someone in the house plugs in a vacuum, and your monitor flickers hard enough to make you freeze. The file you were editing is still open, your modem is humming, and you're suddenly very aware that a small power dip can turn a normal workday into a mess. That's the exact kind of moment where an APC Back-UPS 650 earns its keep, not by acting like a generator, but by giving you a short, clean window to save work, keep the connection alive, and shut down properly.
For many Edmonton home offices, that's the practical use case. You don't need a giant rack UPS to protect a laptop, a modem, and a router; you need something sized for brief interruptions, sensible about what it supports, and realistic about how long the battery will last after it ages. The details matter more than the box label, especially once the battery stops being new.
Table of Contents
- Why the APC Back-UPS 650 Matters for Your Home Office
- Key Specs and What They Mean in Real Use
- How to Size and Choose a UPS for Home and Small Office Use
- Step-by-Step Setup and First-Time Configuration
- Battery Care and Realistic Runtime Expectations
- Common Troubleshooting Scenarios and Quick Fixes
- When to Call On-Site Tech Support in Edmonton
Why the APC Back-UPS 650 Matters for Your Home Office
A home-office outage rarely starts with a dramatic blackout. More often, it's a brief brownout, a flicker, or a breaker trip that hits right when you're in the middle of a spreadsheet or a client meeting. The APC Back-UPS 650 is built for that kind of interruption, not for running a space heater, printer, or a whole workstation farm. Its role is simple, preserve the session long enough for you to act instead of losing everything at once.
In practical terms, the unit sits between the wall and a few essential devices. The North American family is rated at 650 VA / 390 W with 120 V input/output, and Schneider's product sheet lists step-approximated sine wave output with a typical transfer time of about 8 ms (Schneider Electric specifications). That makes it a bridge for short utility interruptions, not a power source for high-inrush gear or long outages.
Practical rule: if a device matters for communication or a graceful shutdown, it belongs on battery backup. If it makes heat, noise, or surges hard at start-up, it usually does not.
A lot of confusion comes from treating a UPS like a mini generator. It isn't. The APC Back-UPS 650 is closer to a buffer that buys you enough time to save files, finish the call, and shut down in order. For a Canadian home office, that's often the difference between a small inconvenience and a corrupted document or a dropped meeting.
If you're thinking about how backup power fits into a broader protection plan, the same mindset applies to file safety and restore options. This best data backup solutions guide is useful context because a UPS protects uptime, while backups protect the data itself.
The key is expectation management. A correctly chosen UPS can save the day during a short outage, but only if the load is sensible and the battery is healthy. That's where the spec sheet, outlet layout, and battery habits all start to matter.
Key Specs and What They Mean in Real Use
The big numbers on a UPS label can look reassuring, but they only help if you know what they translate to at your desk. The APC Back-UPS 650 family is rated at 650 VA / 390 W in the North American model, uses 120 V input/output, and provides step-approximated sine wave output with an 8 ms transfer time (Schneider Electric specifications). In plain language, that means it's designed for modest office loads and quick switchover, not for equipment that needs perfect power conditioning or long runtime.
The outlet split matters just as much as the wattage. The published configuration lists six battery-backup outlets and two surge-only outlets (outlet configuration reference). Battery-backed outlets keep devices running during an outage. Surge-only outlets only protect from spikes, they do not keep anything alive when the power fails.
What the electrical specs mean at the desk
A 650 VA / 390 W UPS is a small-UPS class device. In practical use, that puts it in the lane of a modem, router, laptop charger, and one low-power PC or display, not a desktop tower with a big GPU, a laser printer, and a desktop fan all at once. The 8 ms transfer time is short enough that your equipment usually rides through brief interruptions without rebooting, but it doesn't turn unstable utility power into perfect lab-grade output.
The step-approximated sine wave output is another limit to understand. Most everyday office electronics cope with it, but it's not the same as a pure sine wave UPS designed for more demanding loads. That's why the APC Back-UPS 650 is a sensible fit for home-office basics, especially if your priority is continuity rather than high-end power conditioning.
What belongs on battery and what doesn't
The safest rule is to keep the battery-backed outlets reserved for essentials. A reviewed guide recommends plugging in only items like a router, VoIP phone, and laptop charger and leaving printers, lamps, and USB fans on surge-only or wall power (load guidance). That advice lines up with the unit's size and the fact that it's meant to preserve workflow, not absorb every possible plug-in device on your desk.
A smart way to think about the APC Back-UPS 650 is as a communication anchor. If the modem and router stay up, you can finish the call or submit the work. If the laptop charger is on battery-backed power, you're less likely to lose a nearly drained battery before shutdown. Anything else is a bonus, not a promise.
How to Size and Choose a UPS for Home and Small Office Use
Sizing a UPS is less about finding the biggest number and more about matching the load to the job. Start with the devices you need during an outage, not everything on the desk. For most home offices, that means a laptop, a monitor if necessary, a modem, and a router. A printer, heater, or spare display usually belongs elsewhere.
A good rule is to keep the protected load modest and practical. The APC Back-UPS 650 is a sensible choice when you want enough backup for one workstation and networking gear, but not when you need multi-user coverage or long runtime. If you need to keep several computers going, or if your essential devices already push hard against the UPS limit, step up to a larger unit instead of forcing the 650 to do more than it was built for.
Safe-load mindset: protect the devices that keep work moving, not every device that happens to be nearby.
| Device Combination | Estimated Wattage | Suitable for APC Back-UPS 650 |
|---|---|---|
| Laptop, modem, router | Low to moderate | Yes, for short outages |
| Laptop, monitor, modem, router | Moderate | Usually yes, if total load stays comfortably below the unit limit |
| Desktop PC, monitor, modem, router | Moderate to higher | Sometimes, depending on the PC load |
| Desktop PC, printer, heater | High | No |
| Router, VoIP phone, small NAS | Low to moderate | Often yes, if the combined load remains modest |
What trips people up is assuming every outlet needs battery power. It doesn't. The reviewed guidance is specific, printers, lamps, and USB fans should stay off battery-backed outlets, while essentials like a router, VoIP phone, and laptop charger belong on the protected side (load guidance). That's especially important because the UPS is meant as a workflow buffer, not as a full-conditioning platform for everything in the room.
If you're working from a Canadian home office with a single desk setup, the 650 VA class often makes sense. If your equipment list reads more like a shared office, or your shutdown needs include storage devices and multiple monitors, your sizing conversation should move up a tier. It's better to buy for the load you really have than to discover the limit during the first outage.
Step-by-Step Setup and First-Time Configuration
Place the UPS where it can breathe and where you can reach the outlets without stretching cables across the floor. Once it's in position, connect the internal battery first, then plug the unit into wall power and let it charge before you rely on it. The battery on the APC Back-UPS 650 family is reported to recharge in about 8 hours in one manual source, while another manual notes a full charge usually takes less than five hours and recommends a simulated blackout test (APC manual reference, BK650MC manual reference).
The outlet layout should be sorted before you plug in your gear. The unit's published configuration uses six battery-backup outlets and two surge-only outlets (outlet configuration reference). Put your router, modem, and the devices you need for shutdown on the battery side, then move low-priority accessories to surge-only or direct wall power.
A simple first-time setup order
- Unbox and inspect. Check for damage, confirm the battery is connected, and make sure the power cord and outlets look normal.
- Connect the wall power. Let the UPS charge before treating it like a finished setup.
- Assign the outlets. Battery backup for essentials, surge-only for everything else.
- Connect the communication cable if you use shutdown software. That helps the computer react cleanly when the UPS battery gets low.
- Run a simulated blackout test. The manual recommends testing so you know the unit behaves as expected before a real outage.
- Observe the alarm pattern. A brief test tells you more than a glance at the lights.
A first test is not optional if the UPS will protect work that matters. If it alarms, shuts down unexpectedly, or beeps too soon, fix that now instead of during a storm.
If you use cloud sync, local backups, or external storage at your desk, do not mix them into the battery side without thinking. The safest setup is still the simplest one, only the gear you need to stay online or shut down cleanly belongs on battery power. For people building a broader home-office resilience plan, a separate best external hard drive for backup guide can help you keep storage strategy distinct from power strategy.
The point of first-time configuration is confidence. Once you know which outlets power which devices and you've confirmed the battery can carry the load briefly, the UPS becomes routine. That's a lot easier than guessing during an actual outage.

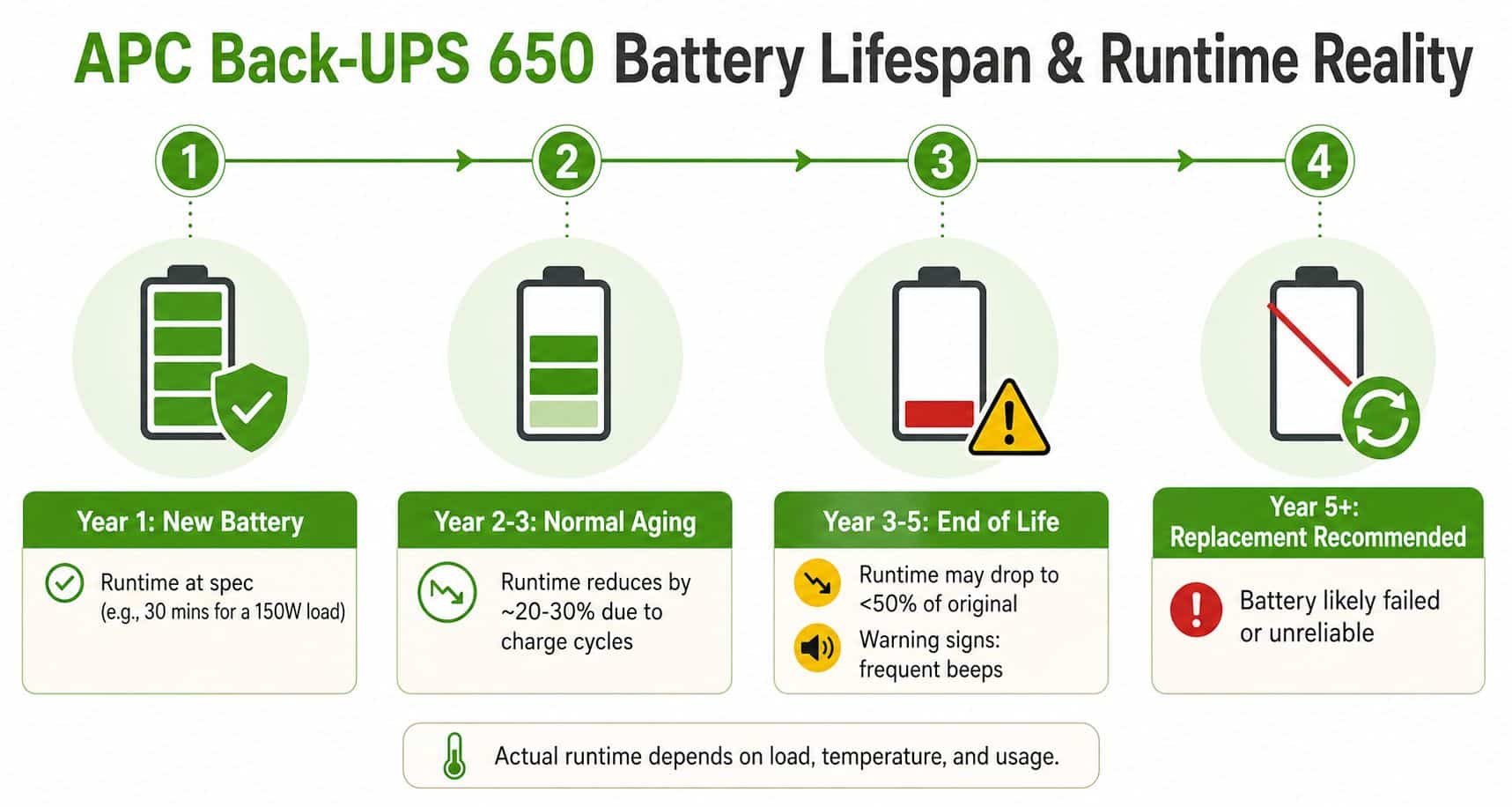

Battery Care and Realistic Runtime Expectations
A UPS battery is not a set-it-and-forget-it part. The APC Back-UPS 650 uses a sealed lead-acid RBC17 battery in one documented model, and that battery needs about 8 hours to recharge fully in the cited manual (manual reference). After that, runtime depends on how much you've plugged in, how old the battery is, and how warm the environment gets.
The important part is how runtime changes after the first year or two. APC forum guidance says a noticeable runtime drop after 3 to 5 years is a strong sign of battery wear, and a review-style source notes that VRLA batteries can lose 20 to 30 percent capacity annually after year one and advises replacement about every 2 years (BK650MC manual reference). That does not mean every battery fails on a schedule, but it does mean you should expect less backup time as the unit ages.
What ageing looks like in real use
At first, the UPS may hold a modest load long enough to cover a short outage and a clean shutdown. Over time, the same setup can reach low-battery alarms sooner, even if nothing else changed. That's where people get caught out, because the box still powers on and still seems normal until the next outage exposes the drop in runtime.
Heat makes this worse. A UPS tucked into a warm closet or buried behind a desk will usually age faster than one with room to breathe. In a home office, that's why placement matters almost as much as brand.
A light maintenance routine that actually helps
- Test it after installation. Use the simulated blackout check so you know the battery and alarm behaviour are normal.
- Re-test periodically. If the load feels like it's dying quicker than before, don't wait for a full outage to notice.
- Watch for age-related change. If runtime is noticeably shorter after a few years, treat that as a battery warning.
- Plan the replacement early. Waiting until the battery fails completely usually means you learn about the problem at the worst possible moment.
If you think of the battery as a consumable instead of a permanent part, the UPS makes more sense. The APC Back-UPS 650 can still be useful years after purchase, but only if the battery is healthy enough to deliver the short buffer you bought it for. Runtime loss is not a surprise, it's part of the lifecycle.
Common Troubleshooting Scenarios and Quick Fixes
When a UPS starts acting up, the issue is often simpler than it feels in the moment. The first clue is usually the sound or the light pattern. A unit that beeps continuously, shuts down too quickly, or fails to show up in software is often dealing with load, cable, or battery trouble rather than a dead chassis.
Quick fixes that solve the most common issues
- Continuous beeping: check whether the connected gear is too heavy for the UPS, then move non-essential items off the battery-backed outlets. If the unit has a silence control, use it only after you've confirmed the load is sensible.
- Software not detecting the UPS: reseat the USB connection, restart the computer, and reinstall the shutdown software if needed. A loose cable can look like a device failure.
- Short runtime or rapid battery drain: reduce the load, let the battery recharge fully, and compare runtime again. If the battery is old and the runtime keeps dropping, replacement is usually the answer.
The attached manual guidance for the APC family also points to regional support in North America, with a USA/Canada technical support line at 1.800.800.4272 (BE650R manual reference). That matters when you're dealing with a persistent alarm or a battery that won't behave after the obvious checks.
For a related example outside the UPS itself, an HVAC case often starts with the same kind of confusion. The HomeProBadge guide for HVAC pros is a useful reminder that power events can expose weaknesses in other equipment too, not just the UPS. If your UPS seems fine but the rest of the room doesn't, the problem may sit elsewhere.
The fastest path is usually to strip the setup back to essentials and retest. If the UPS works with a lighter load, the issue was configuration. If it still behaves badly after a full recharge and a clean cable check, the battery or unit itself may need attention.
When to Call On-Site Tech Support in Edmonton
Some UPS issues are simple enough to sort out with a cable check and a runtime test. Others point to a broader problem, especially when the same outage pattern keeps affecting your PC, network gear, or shutdown process. If the UPS is plugged in correctly, the battery has had time to charge, and the alarms still don't make sense, it's reasonable to bring in a technician who can test the setup in person.
For North American users, APC's own support documentation lists a USA/Canada technical support line at 1.800.800.4272 (BE650R manual reference). That's useful for product-level questions, but a local onsite visit makes more sense when the problem could involve the outlet, the network equipment, the PC, or the battery-backed load mix. A technician can check the whole chain instead of guessing at one piece of it.
Nerds 2 You Edmonton handles on-site computer and network support for homes and small businesses, but does not provide remote services and doesn't provide full MSP services. It does provide ongoing support and network monitoring for small and medium businesses, which fits better when you want hands-on help with a home-office setup, a flaky modem and router, or a shutdown problem that keeps coming back. Their computer service and repair page is the right place to start if you want local, in-person assistance.
A useful comparison point is the Sheffield computer repair guide, which shows how local repair support is often the most practical answer when equipment issues involve more than a single device. That same logic applies in Edmonton when a UPS problem sits beside network drops, unstable power, or a PC that won't shut down cleanly.
If you've already checked the load, let the battery recharge, and the runtime is still poor, the next step is hands-on diagnosis. A home-office UPS should make work calmer, not add another layer of uncertainty.
If your APC Back-UPS 650 is beeping too often, losing runtime, or not fitting your desk setup the way it should, Nerds 2 You Edmonton can help sort out the UPS, the PC, and the network together on site. Visit Nerds 2 You Edmonton to get local help that's built for home offices, small businesses, and the power problems that come with them.
